Orbital wrapper machine HM-A1800 stretch wrapping large bundle
Orbital wrapper machine HM-A1800 stretch wrapping large bundle Orbital wrapper machine HM-A1800 stretch wrapping large bundle

Orbital wrapper machine HM-A1800 stretch wrapping large bundle

Large orbital wrapper machine for stretch wrapping large bundles of wooden skid, furniture, cartons, beds package and mattress .......Available to have double film spools to maximize the wrapping speed.
  • Customized machine applicable for: Wooden skid, furniture, beds, mattress
    • Description
    HM-A1800 large rotating ring which allows users to wrap a wide range of bundles and panels....products. Even like furniture, beds, mattress......The wrapping procedure is proceeded on line continuously by PLC program control system.

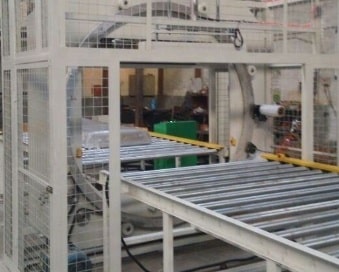

    horizontal stretch wrap machine for large bundles of cartons
    Both in-feed and out-feed conveyors are motorized and fully automatically controlled. The machine has photocell electricity which is a sensor for detecting the wrapping products and give signal to the PLC.
    High tension of the packing material, industrial stretch film are used for making tight and sealed packages. Process such as material loading and cutting as well as re-loading are down by the film cutter.
    Double film spools are available to build on the rotating ring to improve the wrapping speed for higher capacity.
    Features
    Carbon steel with nice finishing for the machine's frame.
    Friction wheels are fixed on the mainboard to drive the rotation ring.
    Aluminum ring features high quality with light weight, make the rotation run in a high speed with low noise.
    Different working height to match specific wrapping products, make the best package for every products.
    Easy operation as the designer has put the convenience to the first place for the machine designing.
    Soft start and stop and ring jog for extending the worklife the machine.
    Red mushroom button to stop the machine immediately when emergency happens.
    All motors are connected with frequency converters for speed adjusting.
    large orbital wrapping machine with super sizes
    belt conveyor used on the orbital wrapping machine
    horizontal wrapping machine with big sizes and packing dimension
    Technical Parameter
    Packing size L800-unlimited, W800-1500mm, H400-1000mm (customized)
    Max weight per requirement
    Film roll dimension
    ID 76mm
    OD max 250mm
    Width 100-250mm
    Stretch film thickness 20-35 microns
    Speed of ring rotation 20-40rmp
    Overlapping rate 15-90%
    Wrapping speed 6-10m/min
    Operation mode automatic operation
    Power supply 380V, 3Ph, 50/60Hz( available to customize)
    Output 3.5kw
    Optional Accessories
    Conveyor
    conveyor belt, roller table, chain conveyor and chain board conveyor are optional
    Film cutter
    Different types of film cutter for different packing material are available to choose
    Film spool
    Two film spools double the speed of wrapping
