Designed for packing roll related products such as carpet rolls and roll of roofing material, thermal sealing and shrink wrapping with two ends exposed for evaporating the remained moisture.......
Heat sealing blade coated by Teflon, no sticking with the film. The sealed package is tough to against crash and abrasion, no failure and leaking.

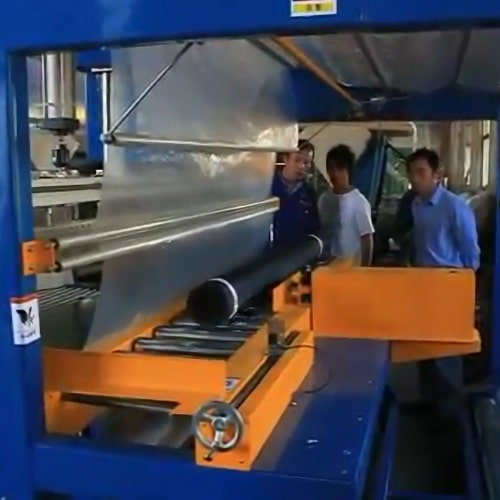

Roller table for rolls in-feeding, automatic pusher to complete the film applying and sealing.
The machine has PLC program and sensors are adopted for detecting the products. Special mechanism can be included for aligning and centralizing the products.
Features
PLC program for machine control, both manual and automatic operation are optional.
Roller table for rolls in-feeding, available to connect with production line.
Applying film on the product before shrinking by heat tunnel.
Pusher driven by pneumatic cylinder for product in-feeding.
Heating sealing and cutting system with constant temperature for various industrial standard shrink films such as PE/POF.
Transverse heat sealing blade for cutting and welding the two layers of film together effectively.
Without replacement, very simple operation for maintenance.
Photoelectricity sensor used for detecting the products makes machine highly automated.
Insulation are applied to the heat tunnel, keeps more heat inside and reduces power consumption.
Air circulation inside the tunnel, distributing heat to every corner.
Cooling fans at the end of the packing line, chill the products within a quick time.
Technical Parameter
| Sealing type | sleeve sealing and shrinking |
| Power supply | 380V/50-60Hz/3phase (440V/480V are available) |
| Product size | 1600mm(width) x 1000mm(outer diameter) |
| Packing capacity | 20-30 rolls/hour |
| Film type | single layer PE film, POF film |
| Max film roll dimension | 1750mm(width) x 280mm(outer diameter) |
| Power consumption | 35kw |
| Heat tunnel conveyor | chains with silicon coated rods |
| Air pressure | ≤0.5MPa |
| Sealing system | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Weight | 1500kg |
