Shrink wrapping machine
Timber wall panel and deckings shrink packaging machine
This is a bale shrink wrapping machine made according to market demand. It can be equipped with an automatic line to complete the automatic unmanned packaging of the product. It is suitable for single item packaging or multiple items stacked packaging.

This bale shrink wrapping machine uses conveyors to deliver the products, stainless steel form to create the bag, the machine has one longitudinal sealing blade automatically seal and cut the ends of package before into the shrinking furnace. Bottom lap sealing down by the shrinking within the furnace. It’s suitable for long shape products such as panel, wooden posts, aluminum profile.....It's very common to use to pack timber wall panels and deckings.

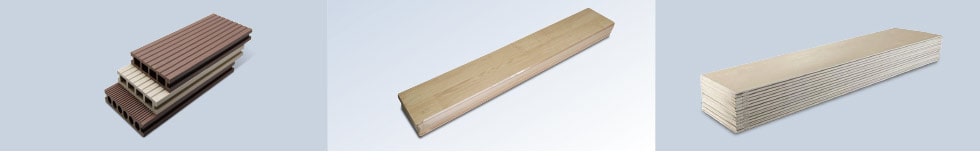

The package using heat contractable film like PE shrink wrap to achieve the ideal packaging effect. When packing timber wall panels, normally the users will make 10 pcs of timber wall panels or deckings to stack in a big bundle and the machine will pack the bundle with transparent film and shrink wrap the bundle to a tight and tidy condition. This packaged timber wall panels and deckings are protected from water, vapor, dust and have a nicer exterior good for selling in the market. This machine adopts advanced technology with PLC control program, the whole machine has stable performance and long service life.

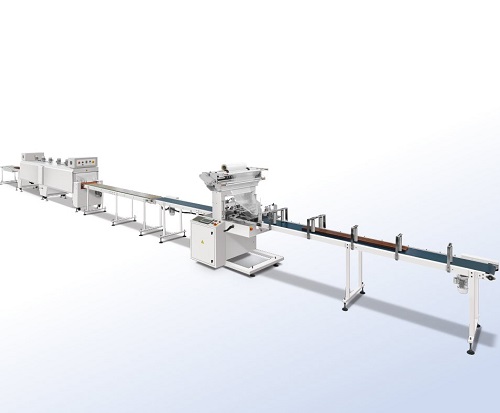

Timber wall panel and deckings sealing shrink wrapper packing wooden Planks

Features and characteristics of the machine:
  1. PLC program and HMI (touch screen) for automatic operation and control, high efficiency and cost-saving.
  2. Two feed-in modes, both auto/manual can be chosen.
  3. Stainless steel form for making the bag with continuous motion and no limit for the length. Multiple forms are optional to add for variant products with different dimensions.
  4. Wide thermal longitudinal sealing blade with Teflon coating and self-protection function, no burning, no smoking, no crazing.
  5. Straight and tight sealing line, beautiful sealing effect.
  6. PE and other industrial standard contractable film material available to use.
  7. Reinforced thicker film materials are available to use by this machine.
  8. Film-feeding length controlled by photoelectric sensor and timer.
  9. Horizontal and vertical magic eyes for smaller or thinner products.
  10. Conveyor belt for the in-feeding and out-feeding, speed of conveyor adjustable by converters.
  11. Insulation of the shrink tunnel: Glass wool sheet, approx 100mm thick.
  12. Roller chain conveyor inside the chamber, steel rods coated with anti-heat silicion.
  13. Temperature control: digital display, 0-230 degree celcius.
  14. Temperature detection: thermoelectric couple.
  15. Automatic air circulation system distribute the heat to every corner of the chamber.
  16. Cooling fans used to cool down the product rapidly after heat shrinking.
