A horizontal pallet wrapping machine holds the load still and turns a large ring around it, which is why metal fabricators rely on it for heavy metal parts, trays and palletised loads that cannot be spun safely on a turntable. If you are weighing a horizontal pallet wrapper against a vertical or semi-automatic model, this guide sets out what is fixed on the machine, what is customised for your plant, and the details to send with your inquiry.

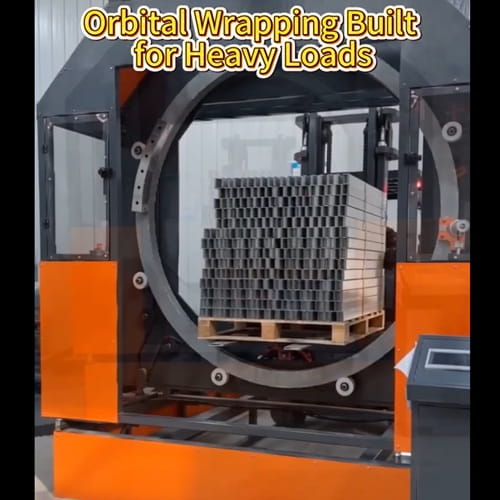

A horizontal pallet wrapping machine wraps a palletised load while the load itself stays still: a large-diameter ring carries the film around it. It is built for metal fabricators, and for heavy metal parts, trays and irregular loads that cannot be rotated safely on a vertical turntable wrapper.
Some parameters are decided by the machine design; others are set when the order is configured. Knowing which is which tells you exactly what to prepare before you send an inquiry.
| Parameter | Fixed on the machine | Configurable | What to tell us |
|---|---|---|---|
| Ring rotation speed | Adjustable, 30–40 rpm | — | The film type and the load profile you wrap |
| Electrical output | 3.0 kW | Power supply customised to your facility standard | The power supply available where the machine will stand |
| Operation mode | Fully automatic cycle | — | How the machine is fed: forklift or packaging line |
| Pallet length detection | Photocell sensors | — | The shortest and longest pallet length you run |
| Film tension | Adjustable film tension controls | — | Whether you need a tight wrap or lighter tension |
| Film cutter | Pneumatic / automatic film cutter | Film size | Film width and roll size |
| Pallet size | Large-diameter rotating ring adapts to various pallet sizes | Custom pallet dimensions | Pallet L × W × H and load weight |
| Safety and access | Emergency stop mechanism | — | Your site guarding and safety requirements |
| Integration | Movable wrapping station on sliding rails; modular construction | Integration into existing warehouse systems and packaging lines | Floor layout and how the line connects |
Every item below feeds directly into a configuration decision — power supply, pallet size or film size. Collect them once and the quotation conversation becomes a single exchange.

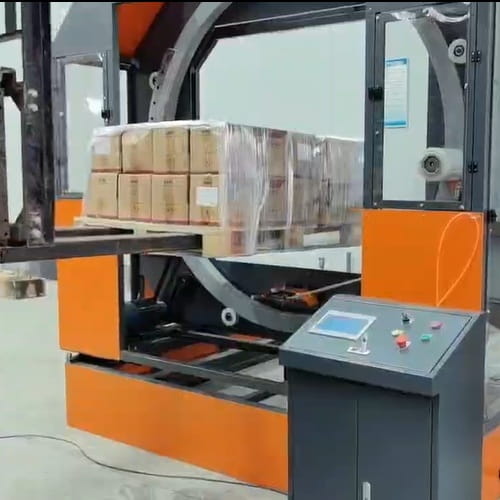

The whole cycle is designed around one principle: the forklift operator stays on the machine. Here is the sequence, from load arrival to a wrapped pallet leaving the ring.
The forklift places the palletised load at the wrapping position. The wrapping station itself moves on sliding rails.
Wrapping is controlled without the operator dismounting, which reduces labour and increases throughput.
Photocell sensors read the pallet length so each cycle matches the load in front of the ring.
The large-diameter ring turns at an adjustable 30–40 rpm and carries the film around the stationary load.
Adjustable film tension controls hold a consistent overlap and help minimise film wastage.
The pneumatic / automatic film cutter separates the film, cutting film handling downtime between loads.
The emergency stop mechanism remains live throughout fully automated operation for operator safety.
Read the load you wrap most often, check the product fact beside it, then make the matching call on your shortlist.
Product fact: the load stays stationary while the ring carries the film around it, so nothing heavy has to be lifted and spun.
Buyer decision: keep the horizontal wrapper on the shortlist when a turntable cannot take the weight of the load.
Check the full specificationProduct fact: adjustable film tension controls keep overlap consistent across uneven profiles, which also helps hold film wastage down.
Buyer decision: confirm the largest footprint and height you run, and send drawings or photos so the configuration matches reality.
See how the ring adaptsProduct fact: photocell sensors detect pallet length, so each cycle is measured against the load rather than a fixed setting.
Buyer decision: give the shortest and longest pallet length you run so the detection range suits your mixed production.
Review detection detailsProduct fact: a semi-automatic pallet stretch wrapping machine with pre-stretch handles loads that can be turned safely on a turntable.
Buyer decision: step down to the turntable model when loads are light and easy to rotate — and step up to the ring wrapper when they are not.
Compare the TP-X165Power supply, pallet size and film size are configured per machine. Send your load details with the inquiry and the quotation comes back matched to the way you actually wrap — including custom configuration for pallet dimensions and film sizes.
Include with your inquiry
Keep adjacent product options together for a faster catalog comparison.
Engineered for precision, our shrink wrap sealer integrates sealing and heating. A reliable shrink wrapping machine manufacturer for diverse industrial needs.
View product
Orbital wrapper machine using adhesive tape like BOPP tape as wrapping material for packing boxes, trays, cartons by wrapping or binding for promotion sales in supermarket.
View product
Engineered for industrial logistics, our semi automatic pallet wrapper optimizes load stability. Reliable stretch wrap machine manufacturers supply today.
View productit wraps a palletised load while the load itself stays still. a large-diameter ring carries the film around the load instead of the load spinning on a turntable, which makes it suitable for heavy metal parts and oddly shaped or irregular loads that cannot be rotated safely.
yes. operation is fully automatic: pallet length is detected by photocell sensors, film tension is controlled automatically, and a pneumatic / automatic film cutter finishes each wrap. an emergency stop mechanism is fitted for operator safety during automated operation.
yes. the design lets forklift operators control wrapping without leaving their seat, so the operator remains seated during the wrapping cycle. this reduces labour and increases throughput.
fixed on the machine: ring rotation speed adjustable between 30–40 rpm, 3.0 kw electrical output, fully automatic operation, photocell pallet length detection, adjustable film tension controls, pneumatic / automatic film cutter and emergency stop. configurable: power supply to suit your facility standard, pallet size and film size.
the machine uses modular construction and can be integrated into existing warehouse systems and automated packaging lines. the wrapping station moves on sliding rails, the large-diameter ring adapts to various pallet sizes, and custom power and pallet size configurations are supported.
procurement runs through the inquiry process rather than a published price. use the inquiry form on the product page or the contact us page, and include your pallet dimensions, load weight, film size and available power supply so the quotation matches the configuration you need.
