Hydraulic mold and die flipper FZ-MH

180 degree open range, this mold flipper adopts hydraulic system.  It's the best turnover machine for tilting injection molds, easy operation and smooth movement keeps both mould and operator free and safe.
  • Standard machine: No
  • Applicable for: Injection mold, mould, casting die, BOP valve bodies
  • Description
    FZ-MH series hydraulic mold flipping machines are designed for mold turnover work, such as large injection molds.

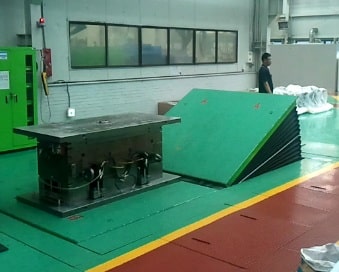

    hydraulic mold and die turnover machine
    The steady structure is capable to handle heavy loads, customized machine has less limitation on the size and dimension.
    Hydraulic system to give strong power support to the machine, capable to handle large heavy loads.
    Adopts the independent hydraulic and electrical system with the hydraulic pressure and control unit  insert.
    Features
    90 degree mold flipping machine, mechanically driving system.
    180 degree open range.......
    Rubber covering hide the hydraulic system and component, free from dust contamination.
    Available to install inside a pit which below the floor level, convenient to work with pallet jack and other equipments.
    Speed controlled through hydraulic valves.
    Automatic stop when flipping is inplace.
    Smooth, accurate, vibration-free motion.
    Easy to operate and simple maintenance needed only few times a year.
    hydraulic tilter-injection mold fipper and casting die turnover machine
    floor level mold downender machine for flipping casting die and injection mold by hydraulic power
    large size hydraulic cylinder for powering the injection mold and casting die with heavy loads
    Technical Parameter
    Degree of tilting 90°
    Max load
    FZ-MH-05 5 ton
    FZ-MH-10 10 ton
    FZ-MH-20 20 ton
    FZ-MH-30 30 ton
    Platform dimension depending on product's dimension
    Turn over speed 50-80 sec/direction
    Operation mode button control
    Power supply 380V, 3Ph, 50/60Hz( 220V, 480V.... available to customize)
