Wire Coil Wrapping Machine EM-W300-D

EM-W300-D Wire Coil wrapping machine, wrapping ring open side up type, two different packing material can be wrapped at the same time for the first and the second layers...
  • Customized machine applicable for: Wire coil, steel coil, Cable coils
  • Description
    EM-W300-D Wire Coil wrapping machine mainly for wrapping packaging in eye through.

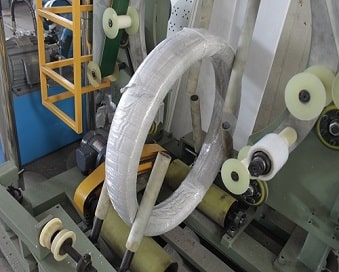

    small wire coil wrapping packing machine
    This machine design could also be used for wrapping circular articles products, such as Cable Coil,Copper Coil,Hose/Pipe Coil, steel belt, PET belt etc.
    Be suitable for many different materials such as stretch film, PE/PVC/HDPE film, paper, wovenn belt etc.
    Operation panel all information be displayed in English. Semi-auto and full-auto machine models can be customized per your requirements.

    Our team can customize machine size per your coil size range for coil wrapping packing.
    Features
    Well-known brands for main components for excellent collections.
    Overlap packing tape can be adjusted by inverter.
    Packing tension can be adjustable per requirements.
    Different packing materials can be changed per needs.
    Up and down supporting rollers are available adjustable.
    Supportive device for holding the light coil in wrapping.
    Separate electrical box for safe operation and technical testing and trouble-shooting.
    Motor overload protection.
    Guardrails for loading and unloading safety.
    Ring speed and roller speed can be adjustable by convertor.
    Friction between wheel and ring is adjustable.

    wire packing device
    coil wrapping packing with film
    wrapping packing machine for wire coil
    Technical Parameter
    Wire Coil weight 10-200kg
    Wire Coil width 50-300mm
    Wire Coil OD 500-800mm
    Wire Coil ID 300-600mm
    Roller Speed 2-4m/min
    Rotating speed 40-100r/min
    Compound paper  Width:100mm    OD:500mm    ID:75mm
    LLDPE/PE/PVC film Width:100mm    OD:200mm   ID:50mm
    Ring speed  100 R/min
    Overlap rate 20%~90%
    Packing speed 35-40 sec/pcs
    Power App. 2.0Kw
    Power supply 380V,50Hz/3ph
    Air supply 6~8kgf/cm2

    Optional Accessories
    Plastic tape winding fastening device
    Tape surface printable brand and logo
    Automatic cutting of plastic tape device
    Automatically cut off the tape and affix the label.
