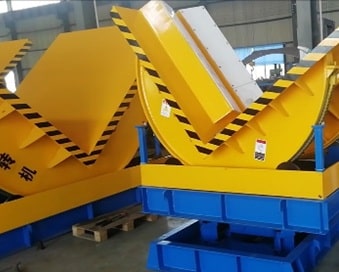

Coil flipper and turner has the base which available to turn the coils 180 degrees. This function of the machine allows the operator easily load and discharge the heavy coils at the same side. Avoid additional operations for moving the forklift back and forth, greatily improve the work efficiency and reduce the risks during the work.
An upgraded model based on the steel coil upender FZ-CT.
Built with slewing gear for the base rotation, enable the machine to turn the coil flipper 180 degree.
Simultaneous rotation for the coil flipping and coil turning is available to operate.
Various capacity for choosing, the greatest load weight up to 50 tons.
Features

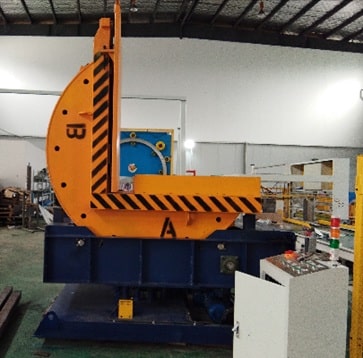

90 degree flipping machine with V saddles for coils and rolls.
Rotating base available to turn the coil flipper 180 degree during flipping.
Convenient operation with coil loading the unloading at the same side.
Reinforced structure with the most scientific designing and good materials.
Machine built to order, flexible to make the platforms according to your specific needs.
Reserved cutout for the loading by C hook is available to make, avoid collisions with the machine during operations.

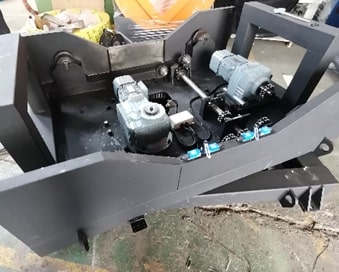

Slewing gear is adopted to the machine for turning the coil flipper and steel coils for the rotation.
Simple operations with limited buttons, special training is not needed.
Control handle/workbench with long cable to keep the operator over a long distance away from the machine.
Optional to upgrade to remote switch control, operator can complete the work with no getting off from the forklift.
Technical Parameter
| Flipping degree | 90° |
| Turning degree | 180° |
| Max load | |
| FZ-CT-05R | 5 tons |
| FZ-CT-10R | 10 tons |
| FZ-CT-20R | 20 tons |
| FZ-CT-30R | 30 tons |
| Platform dimension | built to order |
| Operation mode | button control(jog mode) |
| Flipping speed | 30-60 sec/90° |
| Turning speed | 20-40 sec/180° |
| Power supply | 380V, 50/60Hz, 3Ph(available to customize) |
| Output | 1.5KW/2.2KW/5.5KW... |
| Noise level | ≤75DB |
| Work environment | humidity≤98%，temperature-10-40℃ |
Optional Accessories
Remote switch
for operation on forklift, no getting off
C hook cutout
more convenient to place coils in the right position when loading by C hooks
